Explore Our Range of 120 KVA UPS Solutions

Product Overview:

Uninterruptible Power Supplies (UPS) are crucial for maintaining consistent power to critical systems in data centers and other high-stakes environments. Here, we compare several 120 KVA UPS models from the Liebert series and other brands. Each model is uniquely designed with different features, catering to specific power requirements, scalability, and operational efficiency. This guide will help you understand the key specifications and advantages of each model to make an informed decision.

Compare the Best Options for Reliable Power:

SpecificationsLIEBERT EXM2 120kVALiebert 120 KVA EXMLIEBERT MAKE RG-120KVALIEBERT MAKE SX 120KVA
Image:

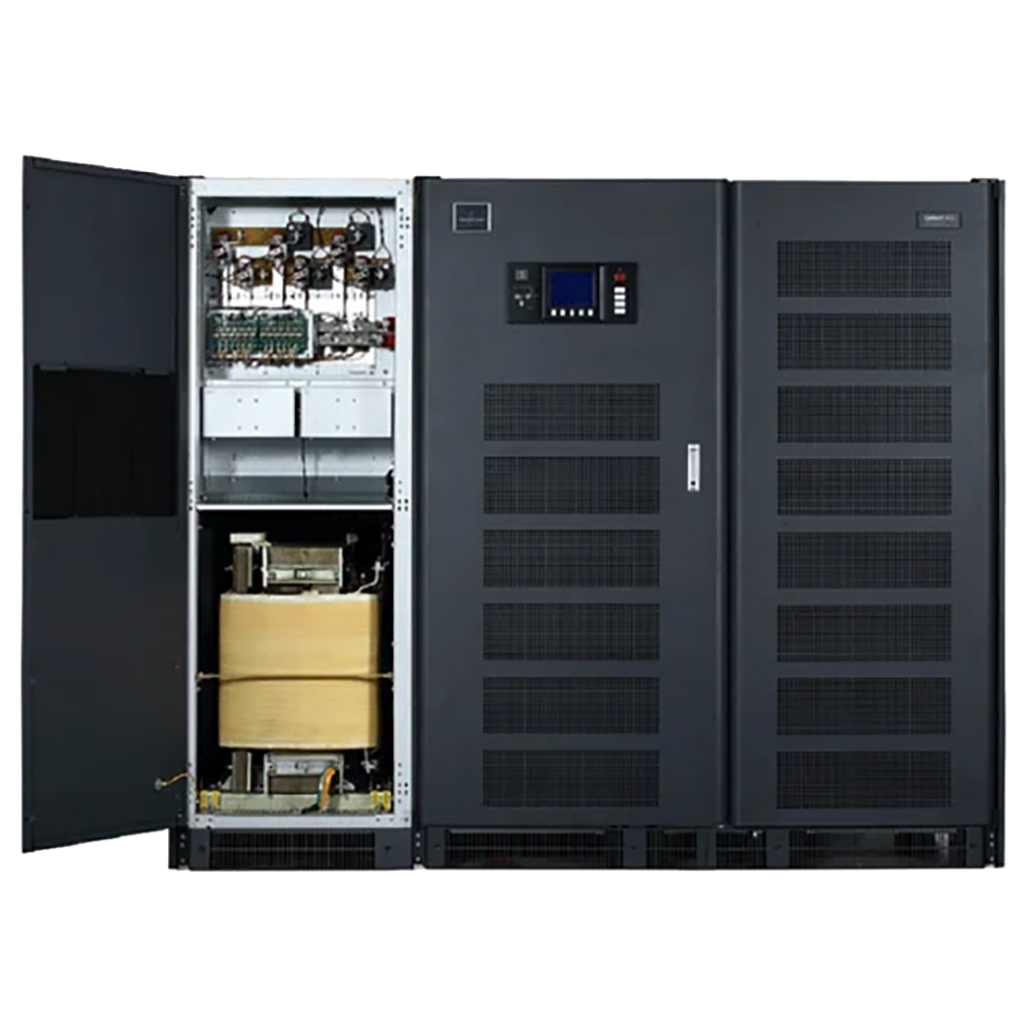

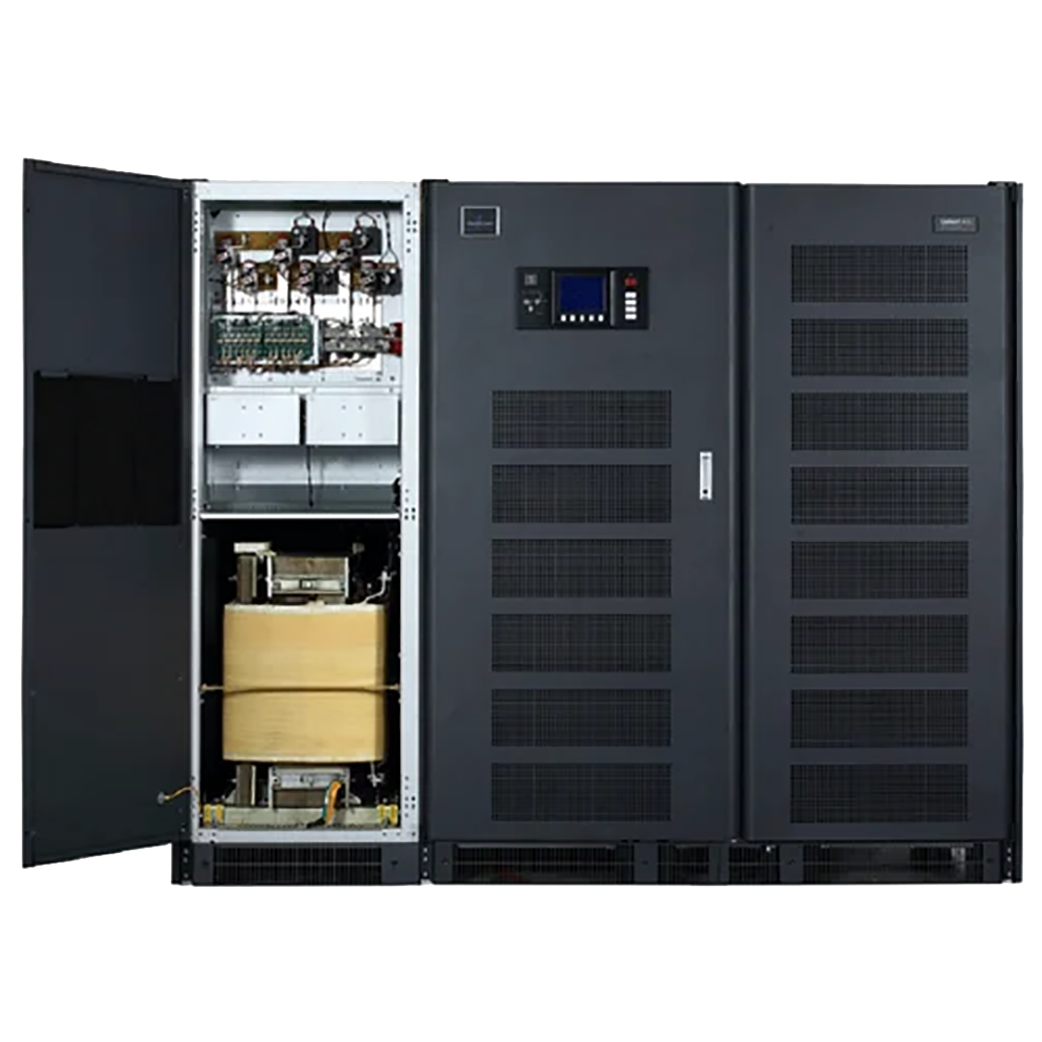

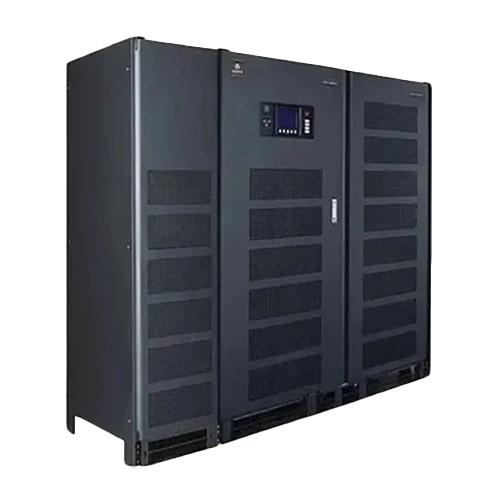

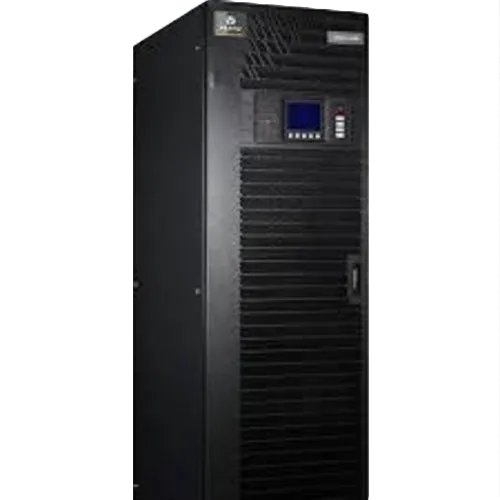

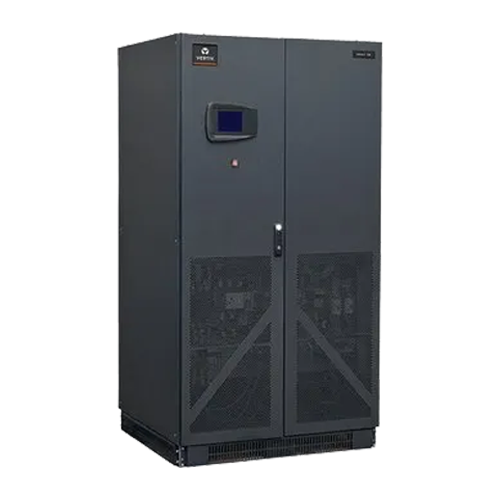

Model Name/Number:Liebert EXM2Liebert EXMHipulse U 120 KVALiebert SX 120kVA UPS
Capacity:120 kVA120 kVA / 120 KW120kVA120kVA
Usage/Application:Power BackupIndustrialIndustrialPower Backup
Battery Type:lithium-ion and SMFSMFSMFSMF/ Li-Ion battery
Phase:3:3 phaseSingle Phase3:3 phase3 phase
Protection:Over VoltageShort CircuitOver VoltageOver Voltage
Weight:350 Kg430 Kg1200 Kg530 Kgs
Dimension:600 x 850 x 1600 (H*W*D)600 x 1000 x 2000 (H*W*D)1900 x 1250 x 855 (H*W*D)1900 mm x 1200 mm x 900 mm
Warranty:1 Year1 Year1 Year1 Year
Operating Temperature:up to 40°C0 - 40 °C0 - 40 °C0 - 40 °C
Back Up Time:10–20 minutes at full load and 20–40 minutes at 50% load10-20 Mins10 - 20 Minutes20 - 40 Minutes
Form Factor or Power Factor:0.99Tower ModelTower Model0.9
Output Voltage:380/400/415 V 3Ph+N415V380/400/415Vac - 3 Phase with Neutral400 (380/415 Selectable, 3ph+N)
Frequency:60 Hz50 Hz40 - 70 Hz40 - 70 Hz
Efficiency:up to 98.8% in Dynamic Online mode96.5 %> 91 %> 96 %
Country of Origin:Made in IndiaMade in IndiaMade in IndiaMade in India
Link:Enquire NowEnquire NowEnquire NowEnquire Now
