Description

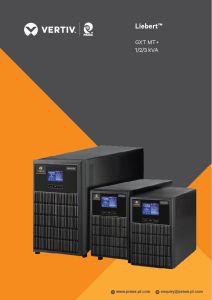

The Liebert GXT MT+ Series are true double conversion online UPS systems, designed to provide capacities of 1, 2, and 3 kVA. These units ensure total isolation of the load from the mains by separating the input and output sections, making them ideal for data networks, small data centers, and VOIP applications. Additionally, the Liebert GXT MT+ systems support hot standby configurations, making them suitable for critical applications such as those in banks.
Model Specification - Metric
| Models | Power Rating | Input Voltage | Output Voltage | Height | Width | Depth | Weight |
|---|---|---|---|---|---|---|---|
| GXT MT + CX 1 kVA | 1 kVA | 230 Vac | 208/220/230/240VAC | 220 mm | 145 mm | 282 mm | 9.8 kgs |
| GXT MT + CX 2 kVA | 2 kVA | 230 Vac | 208/220/230/240VAC | 220 mm | 145 mm | 397 mm | 17 kgs |
| GXT MT + CX 3 kVA | 3 kVA | 230 Vac | 208/220/230/240VAC | 318 mm | 190 mm | 421 mm | 27.6 kgs |
Model Specification - Imperial
| Models | Power Rating | Input Voltage | Output Voltage |
|---|---|---|---|
| GXT MT + CX 1 kVA | 1 kVA | 230 Vac | 208/220/230/240VAC |
| GXT MT + CX 2 kVA | 2 kVA | 230 Vac | 208/220/230/240VAC |
| GXT MT + CX 3 kVA | 3 kVA | 230 Vac | 208/220/230/240VAC |
Features:
IGBT Based Rectifier
True Online Double Conversion with DSP Control Technology for High Performance and Reliability.
New Graphical LCD Display Provides UPS Data, Alarms and Helps in faults diagnostics and trouble shooting.
Double Conversion Efficiency upto 90%.
Active Input Power Factor Correction 0.99.
0.8 Output Power Factor.
Wide Input Voltage window (110 - 280 Vac) for Indian Environmental Condition and for Optimized Battery Performance.
Configurable Output Voltage (200/208/220/230/240 Vac.)
Generator Compatible with Wide Input Frequency Range (40 Hz-70 Hz).
4 Stage Extendable Charging Design for optimized Battery Performance.
Adjustable Battery Charging Current 1/2/4/6 Amps according to Battery Capacity and Rating.
50/60 Hz Automatic Frequency Converter Mode.
Intelligent Monitoring with Standard RS232/USB Port Plus Slot Available for RS485/Dry Contact/SNMP Card.
Inbuilt OVCD.
